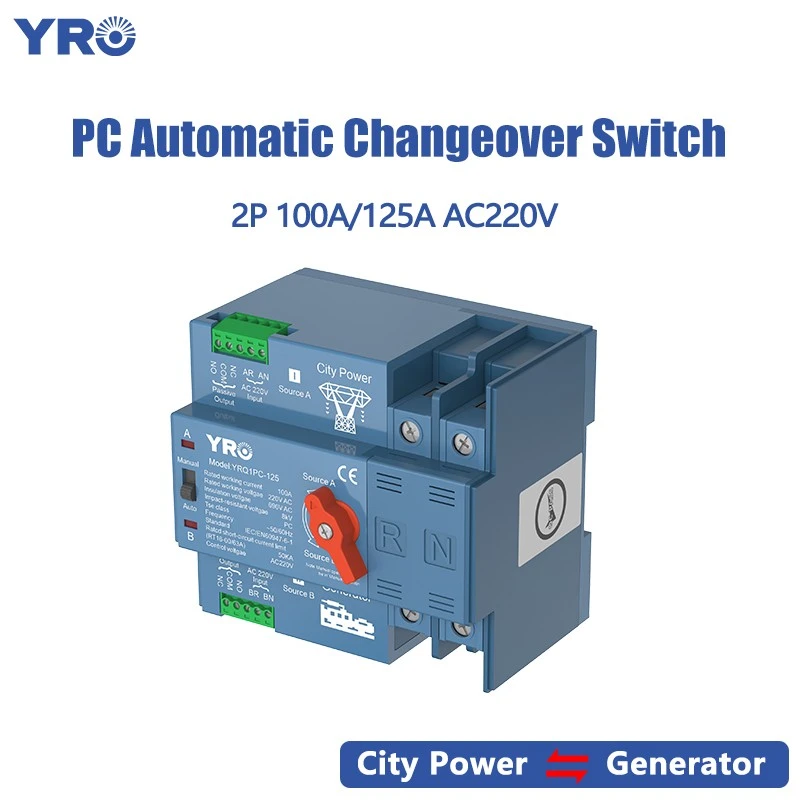

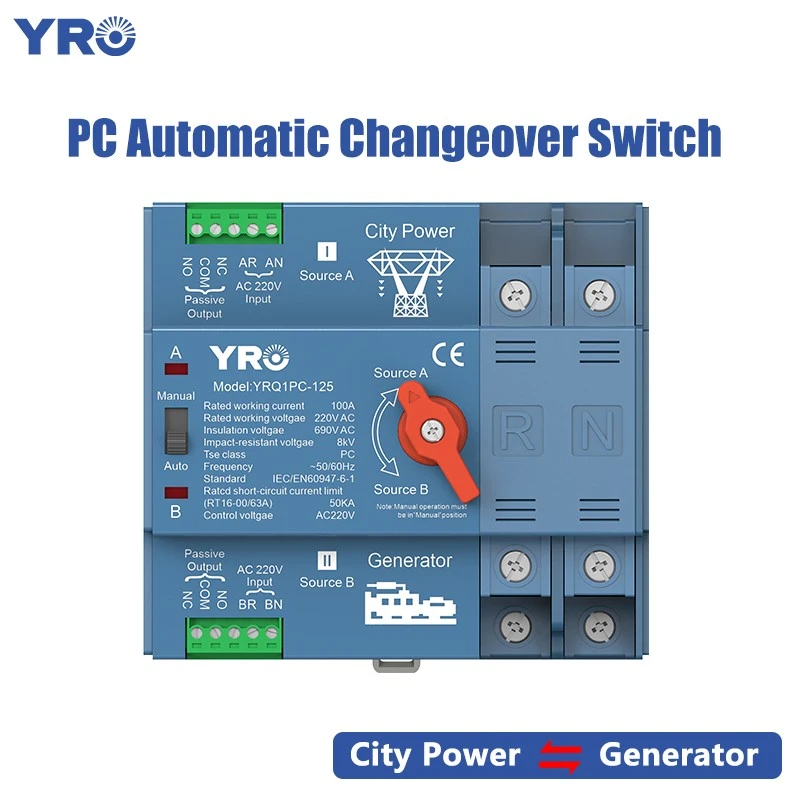

2p 125a 220v Type de générateur PC ATS
Le PC ATS de type générateur YRO 2P 125A 220V convient aux circuits et équipements avec une tension nominale de 220 V et un courant nominal de 125A. Il possède la fonction de basculer automatiquement entre l'alimentation normale et l'alimentation de secours, assurant la continuité et la fiabilité de l'alimentation électrique. Il possède des applications importantes dans de nombreux scénarios civils et de petits petits scénarios industriels et commerciaux qui nécessitent une alimentation électrique stable.
envoyer une demande
Description du produit
Introduction
"2P" indicates double pole, meaning the switching switch can simultaneously control the on off of both the live wire and the neutral wire, suitable for single phase 2P 125A 220V Generator Type PC ATS.
The rated current of 125A determines the maximum safe current value it can carry. In practical applications, it is necessary to select the appropriate model based on the load power and other conditions to ensure that the switch can reliably carry the corresponding current without overloading issues.
The rated voltage of 220V indicates its compatibility with the standard power supply voltage level, commonly used in regular power supply environments such as homes, small offices, and shops.
The rated current of 125A determines the maximum safe current value it can carry. In practical applications, it is necessary to select the appropriate model based on the load power and other conditions to ensure that the switch can reliably carry the corresponding current without overloading issues.
The rated voltage of 220V indicates its compatibility with the standard power supply voltage level, commonly used in regular power supply environments such as homes, small offices, and shops.
Parameter
| Product series | YRQ1PC-125 |
| Rated Current | 125A |
| Rated Voltage | 220V |
| Changeover Time | 30ms |
| Frequency | 50/60Hz |
| Operation Voltage | 180~270V |
| Certification | CE |
Feature
Fast conversion: it can monitor the status of common power supply in real time, and once it detects the failure of common power supply such as power loss, undervoltage, overvoltage, etc., it can automatically switch to the standby power supply within 30ms, minimizing the downtime of power equipment caused by power supply problems.
Wide applicability: due to its 220V characteristics, it can be widely used in all kinds of civil buildings for the protection of power supply of lighting, sockets, small electrical appliances and other loads, and is also suitable for some small commercial establishments in the power supply lines of the equipment that have certain requirements for the continuity of power supply.
Wide applicability: due to its 220V characteristics, it can be widely used in all kinds of civil buildings for the protection of power supply of lighting, sockets, small electrical appliances and other loads, and is also suitable for some small commercial establishments in the power supply lines of the equipment that have certain requirements for the continuity of power supply.
Details

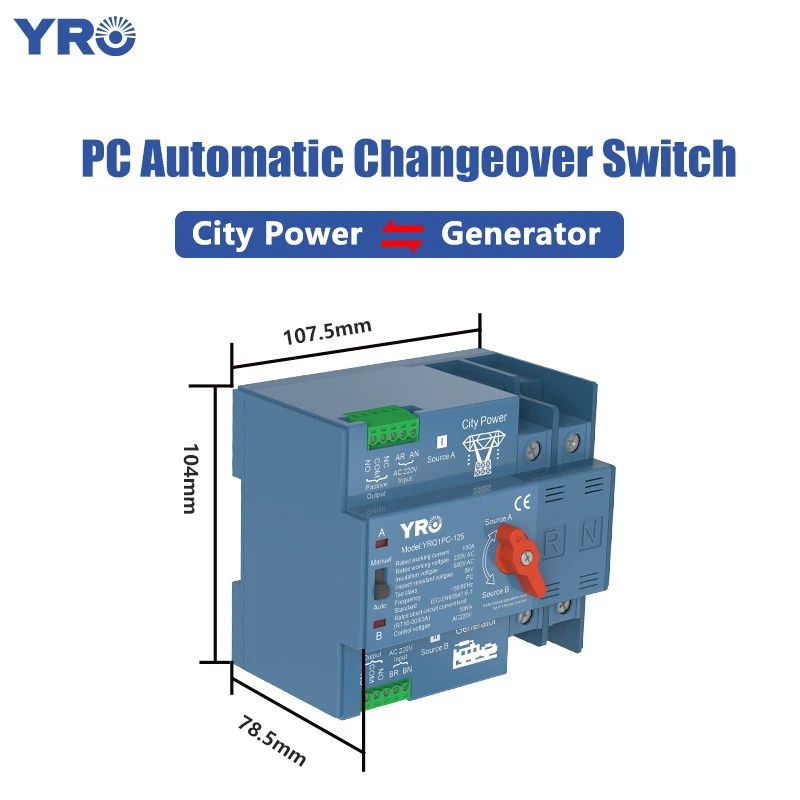

√Installation Convenience: YRO provides the dimensions of the dual power supply, enabling users to make full preparations before installation, such as reserving an appropriate installation space and preparing necessary installation tools. This helps to accelerate the installation speed and improve the installation efficiency.

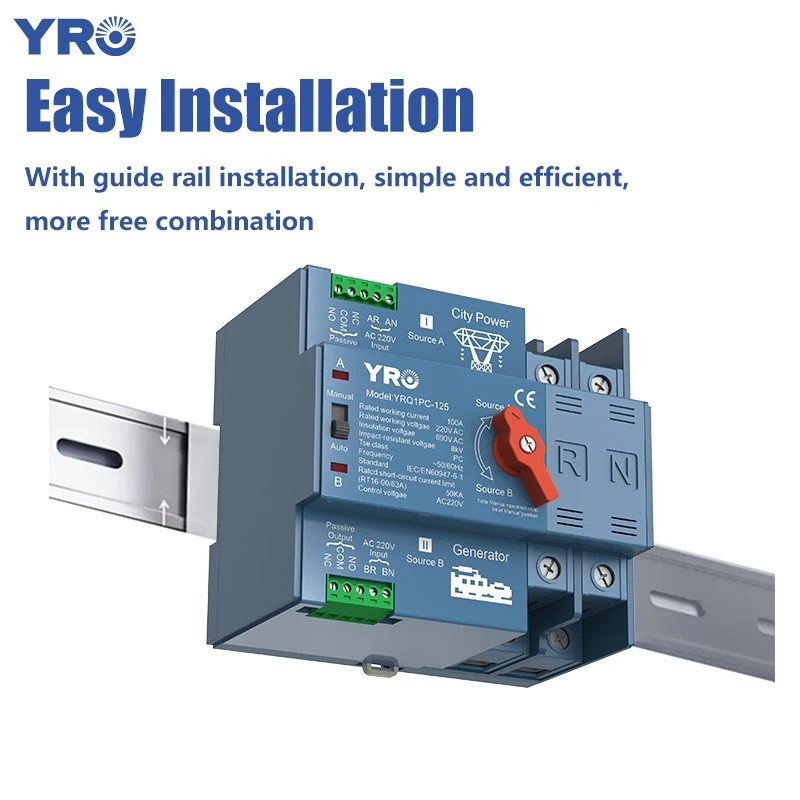

√Maintenance and Replacement Convenience: During the service life of the equipment, maintenance and replacement are inevitable. The ATS with rail mounting has obvious advantages in this regard. When it is necessary to conduct maintenance inspections on the transfer switch, users can easily remove it from the rail.
√Maintenance and Replacement Convenience: During the service life of the equipment, maintenance and replacement are inevitable. The ATS with rail mounting has obvious advantages in this regard. When it is necessary to conduct maintenance inspections on the transfer switch, users can easily remove it from the rail.
